Operation Parameter:
1. Flux:43～700 m3/h
2. Lift:8.5～48.5 m
3. Power:4～75 kw
Product introduction:

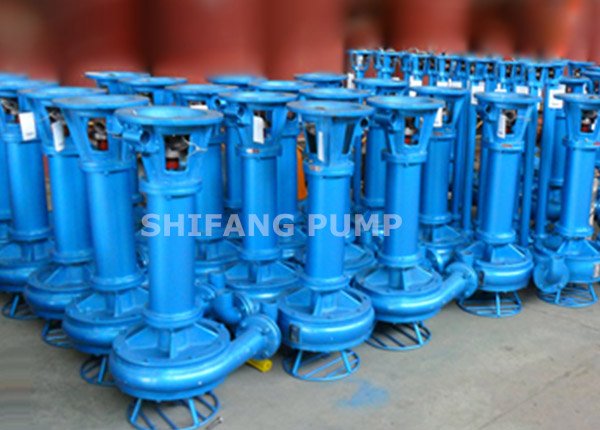

The 2.5PWL, 6PWL and 8PWL type products are vertical single-stage single-suction centrifugal sewage pump. they are applicable to feed liquid below 80℃ with fiber or other suspended substances in sewage disposal of urban industrial and mining enterprises.
The pump is not applicable to feed chemical mixture liquid with acidity, alkalinity and salinity that can cause metal corrosiveness. Corrosion-resisting sewage pump can be selected for this special demand.
Specifications
| Model | Capacity Q | Head H | Speed n | Shaft power Pa | Motor power | Efficiency η | NPSHr | Inlet/Ourlet Diam. | Pump weight | |||
| m3/h | l /s | m | r/min | KW | KW | Model | % | m | Inlet | Ourlet | kg | |
| mm | mm | |||||||||||
| 2.5PWL | 43 | 11.94 | 48.5 | 2900 | 11.6 | 22 | Y180M-2 | 49 | 3 | 125 | 80 | 65 |
| 90 | 25 | 43 | 17 | 62 | 4.5 | |||||||
| 108 | 30 | 39 | 19.1 | 60 | 5.5 | |||||||
| 2.5PWL | 43 | 11.94 | 34 | 2900 | 7.81 | 15 | Y160M2 -2 | 51 | 4 | 125 | 80 | 65 |
| 90 | 25 | 26 | 11 | 58 | 5 | |||||||
| 108 | 30 | 24 | 12.6 | 56 | 6 | |||||||
| 2.5PWL | 36 | 10 | 11.6 | 1450 | 2.11 | 4 | Y112M-2 | 54 | 2.5 | 125 | 80 | 65 |
| 60 | 16.67 | 9.5 | 2.51 | 62 | 2.8 | |||||||
| 72 | 20 | 8.5 | 2.71 | 61.5 | 3 | |||||||
| 4PWL | 72 | 20 | 12 | 970 | 3.99 | 7.5 | Y160M-6 | 59 | 3 | 150 | 100 | 125 |
| 100 | 27.78 | 11 | 4.68 | 64 | 3.5 | |||||||
| 120 | 33.33 | 10.5 | 5.54 | 62 | 4.5 | |||||||
| 108 | 30 | 27.5 | 1450 | 13.5 | 30 | Y200L-4 | 60 | 2.2 | 150 | 100 | 125 | |
| 160 | 44.44 | 25.5 | 17.9 | 62 | 2.5 | |||||||
| 180 | 50 | 24.5 | 19.5 | 61.5 | 3 | |||||||
| 6PWL | 250 | 69.44 | 30 | 1450 | 34.1 | 55 | Y250M-4 | 60 | 5 | 200 | 150 | 417 |
| 350 | 97.22 | 27 | 42.2 | 61 | 5.5 | |||||||
| 450 | 125 | 23 | 47 | 60 | 6 | |||||||
| 200 | 55.6 | 16 | 970 | 13.5 | 30 | Y225M-6 | 65 | 3 | 200 | 150 | 417 | |
| 300 | 83.3 | 14 | 17 | 67 | 3.2 | |||||||
| 400 | 111.1 | 12 | 20 | 65 | 3.5 | |||||||
| 8PWL | 350 | 97.22 | 15.5 | 730 | 23.1 | 45 | Y280M-8 | 64 | 2.5 | 250 | 200 | 750 |
| 500 | 138.89 | 13 | 29 | 61 | 3.5 | |||||||
| 650 | 180.56 | 9.5 | 33 | 51 | 4 | |||||||
| 400 | 111.1 | 27.5 | 970 | 50 | 75 | Y315S-6 | 60 | 4.1 | 250 | 200 | 750 | |
| 550 | 153 | 25 | 59.5 | 63 | 4.4 | |||||||
| 700 | 194.4 | 21 | 69 | 58 | 5 | |||||||
